Zenith / Isuzu Marine Propulsion Unit – 96hp
Isuzu diesel engines marinised by Zenith Engineering for marine propulsion or on board power pack applications, engine range from 48hp to 163hp.
The Engine
Isuzu Model 4BG1-TRW01
Aspiration Turbocharged
Cylinders Four
Bore x Stroke (mm) 105 x 125
Displacement (cc) 4329
Alternator – 12 volt 94 amp (approx)
OD – Exhaust elbow outlet 3”
OD – Raw water inlet 1.25”
OD – Fuel Inlet 10mm
OD – Fuel Return 10mm
Maximum Engine Output – kW (HP) 72.3 (96) @ 2500rpm
Maximum Torque 310 Nm @ 1600rpm
Engine Rotation Counterclockwise, viewed from flywheel
Approx.Fuel Consumption @ 1500rpm: 75% Load 11.9 litres/hour
(note that fuel consumption will vary substantially with load and rpm)
The Transmission
ZF Model ZF45-1
Single speed , vertical offset, direct mount
Reverse reduction integral marine transmission, with hydraulically actuated multi disc clutches.
Available Ratios 2.2, 2.51, 3.03 and 3.74:1
The Options
• Plug-in extension wiring harness (from 1 meter)
• Engine Mounts
• Coupling for output flange
• Full instrument panel
• 24 volt electrics
• Control cable mounting brackets for engine/transmission

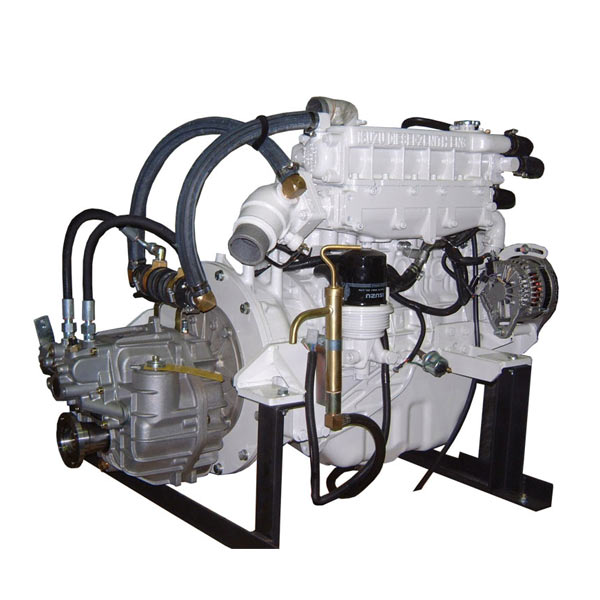

*Image shown may not reflect actual engine configuration
