Vortum Marine Genset – V18.5 (18.5KVA)
Made for Leisure Boats. Designed to Perform
Meet Vortum. Zenith Engineering’s new range of super silenced, marine generators, engineered to meet the unique demands of leisure marine vessels. Combining the renowned reliability of Isuzu-powered marine generators with cutting edge sound attenuation technology for quiet efficient, dependable performance at sea.
Reliable Marine Power
Australia’s most forgettable marine generator. You won’t hear it, You’ll rarely see it. Finally, a generator so reliable it practically disappears.
Vortum is not just a generator, it’s peace of mind, performance, and quiet efficiency in one powerful package. Carefully crafted to deliver silent, steady, performance when you need it most.
Precision-egineered for Silence and Durability
Each Vortum generator is enclosed in a purpose-built sound-attenuated cabinet, designed to minimize noise without compromising airflow or performance. Key features include:
- High-grade construction: Fabricated from 2mm powder-coated aluminium for superior corrosion resistance and a lightweight overall unit.
- Innovative airflow design: Directional flow is managed through specially designed baffle end pieces, eliminating the need for commonly used noise-leaking vents.
- Premium sound insulation: Lined with 32mm thick acoustic foam, embedded with 2mm rubber wavebar for maximum sound absorption.
Proven Power and Performance
At the heart of every Vortum generator is the robust Isuzu engine, seamlessly paired with a MeccAlte alternator from Italy. Combined with our custom-built cooling package, this results in a marine generator system that is:
- Exceptionally reliable
- Quiet in operation
- Built to endure harsh marine environments

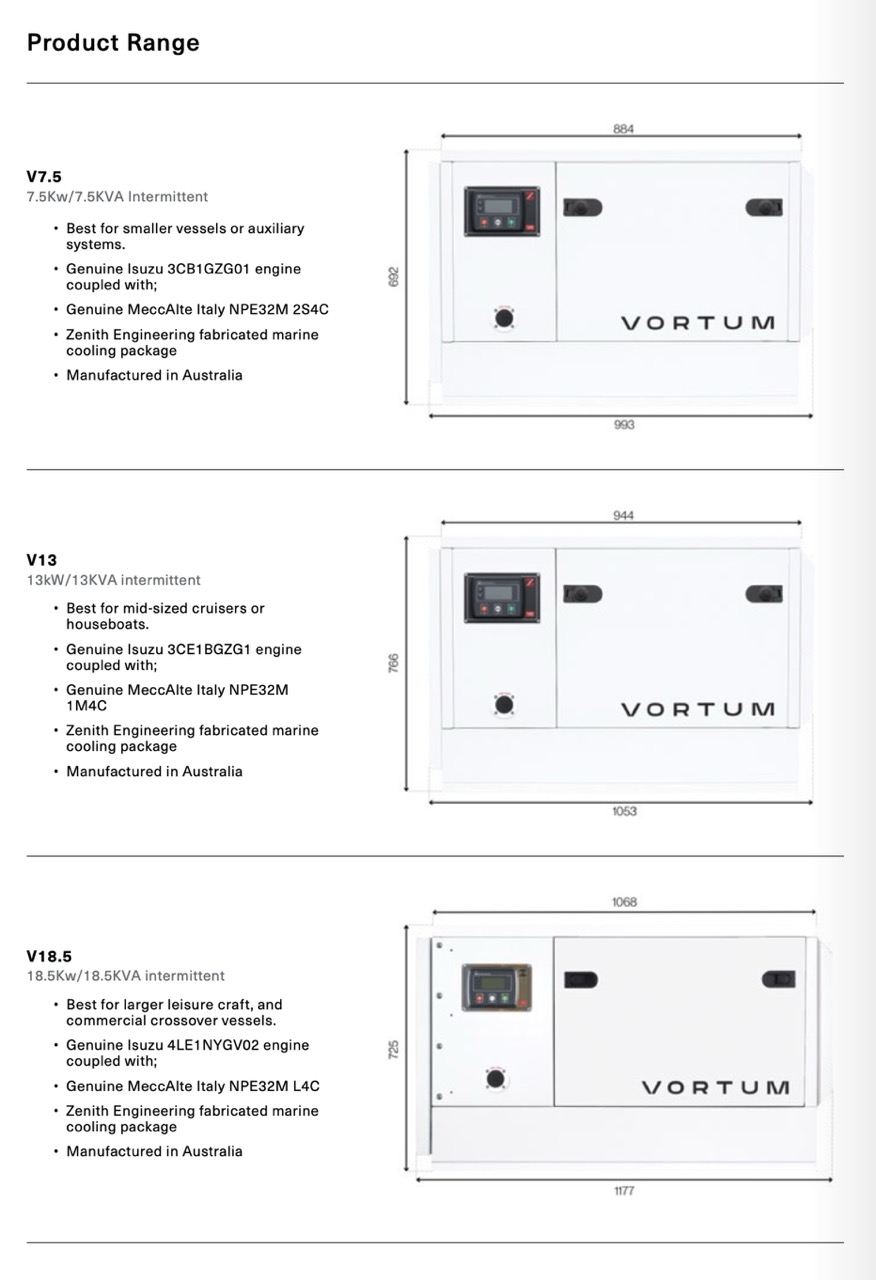

The Vortum Range
Engineered for real-world conditions and tested commercially for 45 years in Australia’s harshest coastal environments, the vortex range is super silenced and built to perform. The Vortum ranges is manufactured in Australia and available now in three sizes 7.5 KVA, 13 KVA, 18.5 KVA.
V18.5 – Best for larger leisure craft, and commercial crossover vessels
18.5 kW / 18.5 kVA
66 dB @ 1m, 57 dB @ 7m
Genuine Isuzu 4LE1NYGV02 engine
Genuine MeccAlte Italy NPE32M L4C
Zenith Engineering fabricated marine cooling package
Manufactured in Australia
Standard Build Inclusions
DSE4520 MKII control panel mounted to cabinet
Wet exhaust outlet interchangeable at either end of cabinet
Multiple syphon break port locations available
Anti-condensation heaters fitted to Mecc Alte alternator
Mecc Alte alternator windings double dipped marine varnish for extra protection in marine environment
Starter kit of spares
Optional Extras Available
Remote key start panel with ESTOP fitted
Extension harness for remote panel mounting (all lengths available)

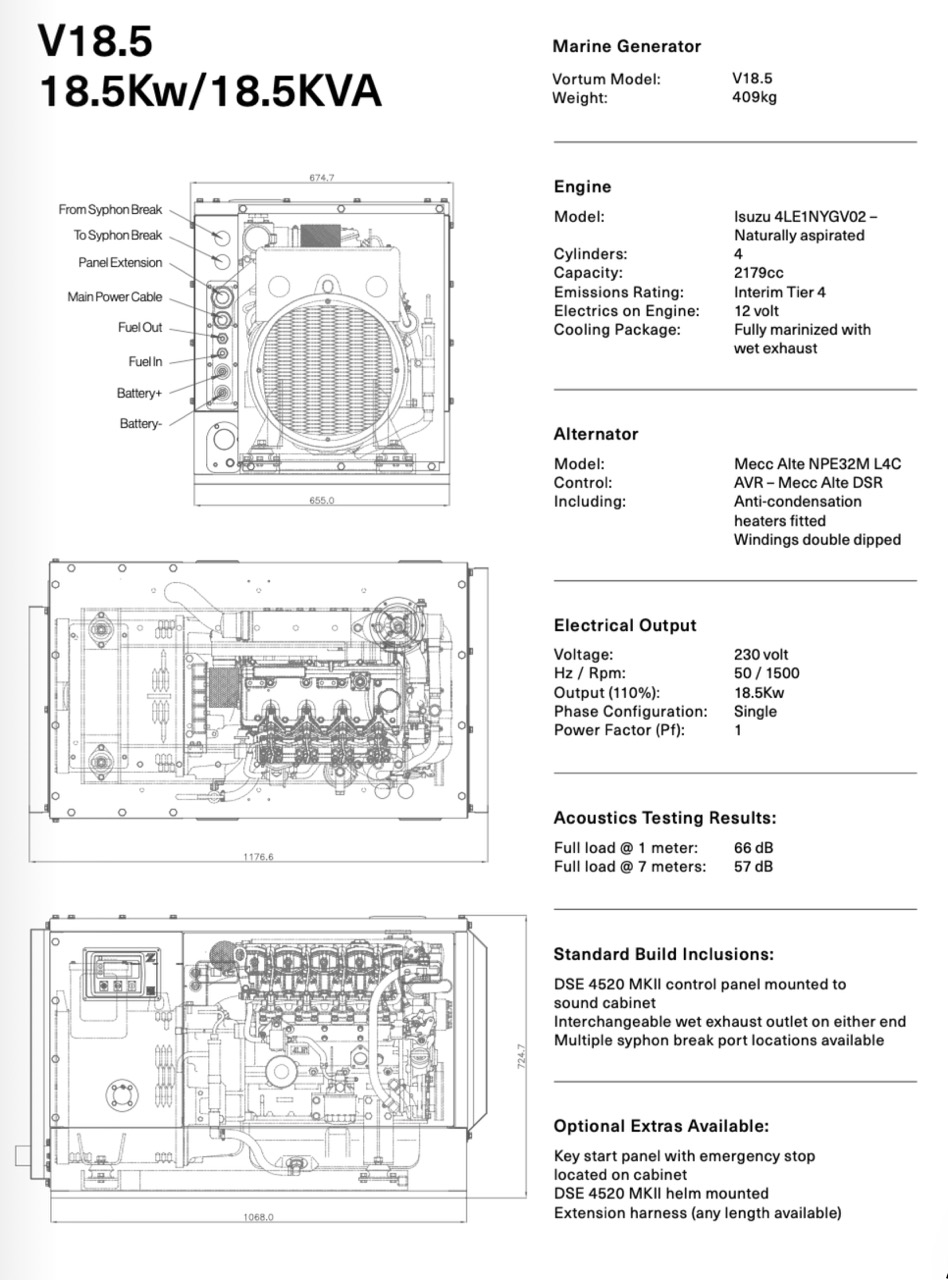

Specifications
Dimensions: 1177 mm x 675 mm x 725 mm
Weight: 409 kg
Engine
Make: Isuzu
Model: 4LE1NYGV02
Cylinders: 4
Capacity (cc): 2179
Emissions Rating: Interim Tier 4
Electrics on Engine: 12V
Cooling Package: Fully marinised, wet exhaust
Alternator
Make: Mecc Alte
Model: NPE32M L4C
Control: AVR – Mecc Alte DSR
Extras: Air‑condenser, Insulated flexible, Winchup double‑dipped marine varnish
Electrical Output
Voltage: 230 V
Hz / RPM: 50 / 1500
kW Output (110%): 18.5 kW
Phase Configuration: Single
Power Factor (PF): 1
Acoustic Results
Full load @ 1 m (dBA): 66
Full load @ 7 m (dBA): 57
