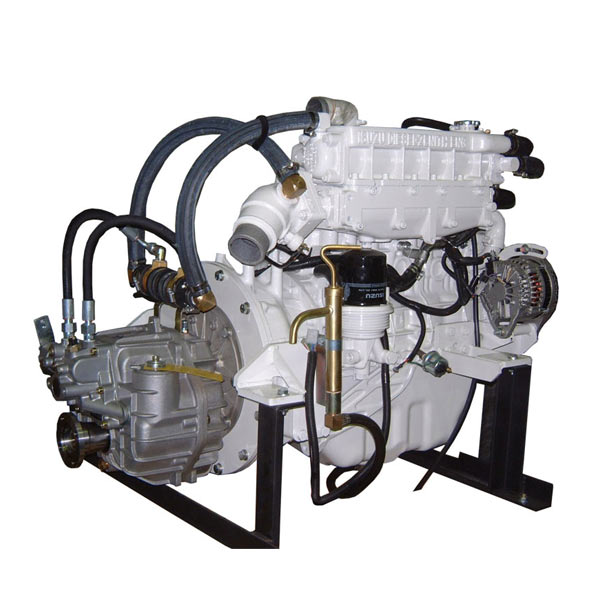

Zenith / Isuzu Marine Propulsion Unit – 83hp
Isuzu diesel engines marinised by Zenith Engineering for marine propulsion or on board power pack applications, engine range from 48hp to 163hp.
The Engine
Isuzu Model 4JG1T
Aspiration Turbocharged
Cylinders Four
Bore x Stroke (mm) 95 x 107
Displacement (cc) 3059
Alternator – 12 volt 94 amp
OD – Exhaust elbow outlet 2.5” or 3”
OD – Raw water inlet 1.25”
OD – Fuel Inlet 10mm
OD – Fuel Return 10mm
Maximum Engine Output kW (hp) 61.89 (83) @ 2500rpm
Maximum Torque 260 Nm @ 1800rpm
Engine Rotation Counterclockwise, viewed from flywheel
Aprox 350kg
The Transmission
ZF Model ZF45A
Single speed , 8 degree down angle, direct mount
Maximum rated input 155kW (208hp) at 3300rpm. Pleasure duty.
Reverse reduction integral marine transmission, with hydraulically actuated multi disc clutches.
Available ratios 1.256, 1.514, 2.034, 2.435
The Options
• Plug-in extension wiring harness (from 1 meter)
• Engine Mounts
• Coupling for output flange
• Full instrument panel
• 24 volt electrics
• Control cable mounting brackets for engine/transmission
*Image shown may not reflect actual engine configuration
