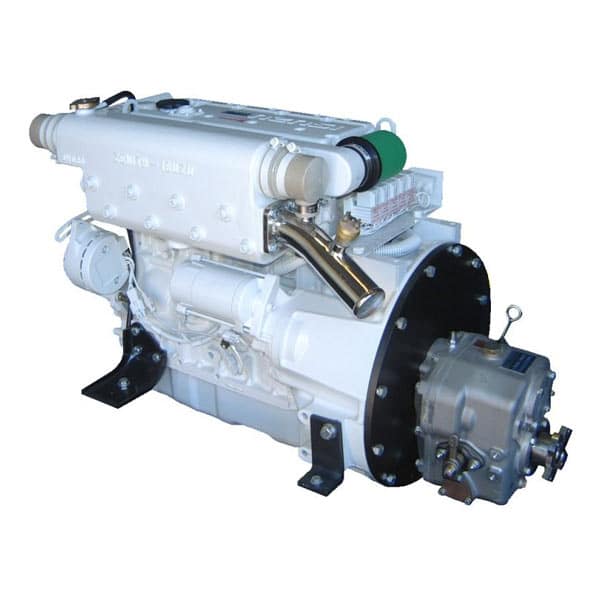

Zenith / Isuzu Marine Propulsion Unit – 48hp
Isuzu diesel engines marinised by Zenith Engineering for marine propulsion or on board power pack applications, engine range from 48hp to 163hp.
The Engine
Isuzu Model 4LE1
Aspiration Natural
Cylinders Four
Bore x Stroke (mm) 85 x 96
OD – Exhaust elbow outlet 48mm
OD – Raw water inlet 3/4”
OD – Fuel Inlet 8mm
OD – Fuel Return 5mm
Displacement (cc) 2179
Alternator – 12 volt 94 amp
Maximum Engine Output kW (hp) 35.9 (48.1) @ 2600rpm
Maximum Torque 144 Nm @ 1800rpm
Engine Rotation Counterclockwise, viewed from flywheel
Approx.Fuel Consumption @ 1500rpm: 75% Load 4.25 litres/hour
The Transmission
ZF Model ZF15M
Single speed , vertical offset, direct mount
Maximum rated input 54kW (73hp) at 3600rpm. Pleasure duty.
Reverse reduction marine transmission, with mechanically actuated multi disc clutches.
Ratio 1.875
The Options
• Plug-in extension wiring harness (from 1 meter)
• Engine Mounts
• Coupling for output flange
• Full instrument panel
*Image shown may not reflect actual engine configuration
