Zenith / Isuzu Marine Propulsion Unit – 163hp
Isuzu diesel engines marinised by Zenith Engineering for marine propulsion or on board power pack applications, engine range from 48hp to 163hp.
The Engine
Isuzu Model 6BG1T
Aspiration Turbocharged
Cylinders Six
Bore x Stroke (mm) 105 x 125
Displacement (cc) 6494
Alternator – AC 12 volt 94 amp
OD – Exhaust elbow outlet 3”
OD – Raw water inlet 1.25”
OD – Fuel Inlet 10mm
OD – Fuel Return 10mm
Maximum Engine Output – hp 163 @ 2200rpm
Maximum Torque 576.9 Nm @ 1800rpm
Engine Rotation Counterclockwise, viewed from flywheel
Approx.Fuel Consumption @ 1500rpm: 75% Load 18.3 litres/hour
(note that fuel consumption will vary substantially with load and rpm)
The Transmission
ZF Model ZF220
Single speed , vertical offset, direct mount
See data sheet
The Options
• Plug-in extension wiring harness (from 1 meter)
• Engine Mounts
• Coupling for output flange
• Full instrument panel
• 24 volt electrics
• Control cable mounting brackets for engine/transmission

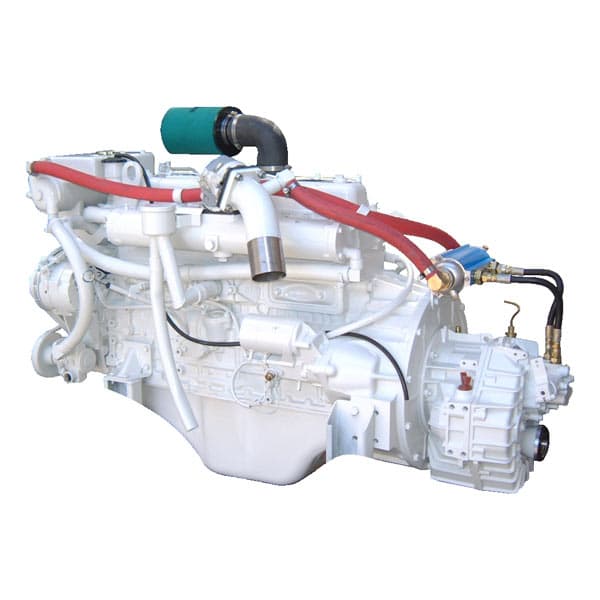

*Image shown may not reflect actual engine configuration
