Zenith / Isuzu Marine Propulsion Unit – 62hp
Isuzu diesel engines marinised by Zenith Engineering for marine propulsion or on board power pack applications, engine range from 48hp to 163hp.
The Engine
Isuzu Model 4JG1
Aspiration Natural
Cylinders Four
Bore x Stroke (mm) 95.4 x 107
Displacement (cc) 3059
Alternator – 12 volt approx.94 amp
OD – Exhaust elbow outlet 2.5” or 3”
OD – Raw water inlet 1”
OD – Fuel Inlet 10mm
Maximum Engine Output kW (hp) 46.7 (62.6) @ 2600rpm
Maximum Torque 200 Nm @ 1800rpm
Engine Rotation Counterclockwise, viewed from flywheel
Approx.Fuel Consumption @ 1500rpm: 75% Load 4.6 litres/hour
(note that fuel consumption will vary substantially with load and rpm)
The Transmission
ZF Model ZF25
Single speed , vertical offset, direct mount
Maximum rated input 107kW (143hp). Pleasure duty.
Reverse reduction integral marine transmission, with hydraulically actuated multi disc clutches.
Available Ratios 1.969, 2.80
The Options
• Plug-in extension wiring harness (from 1 meter)
• Engine Mounts
• Coupling for output flange
• Full instrument panel
• 24 volt electrics
• Control cable mounting brackets for engine/transmission

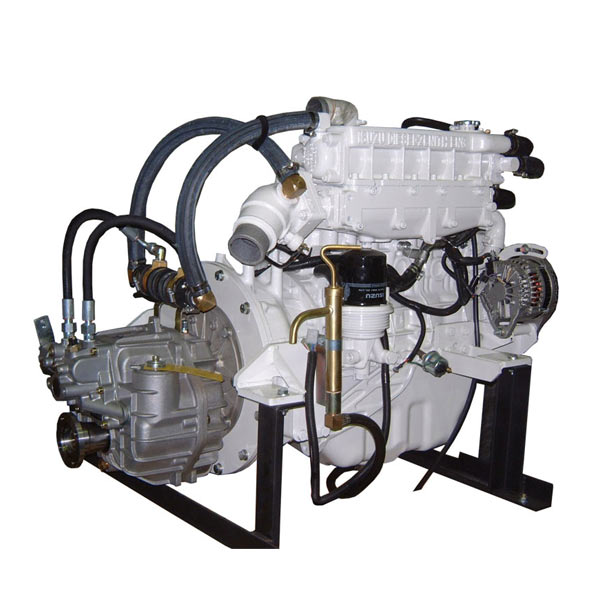

*Image shown may not reflect actual engine configuration
