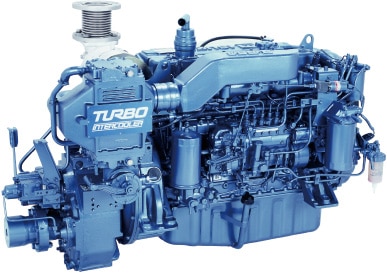

Isuzu UM6BG1TC – 226hp Marinised Propulsion Engine
Isuzu Japan Factory Marinised Propulsion Engine
The Isuzu UM6BG1TC is a high‑performance, marinised propulsion engine engineered to deliver dependable power for commercial vessels. Built on Isuzu’s proven 6‑cylinder diesel platform, this turbocharged and intercooled engine offers the perfect combination of durability, fuel efficiency, and smooth operation—making it ideal for operators who demand consistent performance in challenging marine environments.
Engineered for Commercial Demands
At the heart of the UM6BG1TC is a 6‑cylinder, vertical in‑line, 4‑cycle diesel engine with direct injection, designed for long service life and reduced fuel consumption. With a displacement of 6.494 litres, the engine delivers strong output across a wide RPM range.
- Rated Output (Medium Duty): 154 kW (210 PS) @ 2600 rpm
- Rated Output (Light Duty): 169 kW (230 PS) @ 2700 rpm
These options allow vessel builders and operators to match the engine’s powerband to specific commercial applications.
Turbocharged Efficiency
Equipped with a turbocharger and intercooler, the UM6BG1TC ensures optimal combustion and maximum torque under load. Its performance curves show a strong, steady rise in both torque and horsepower, supporting reliable propulsion even under demanding conditions.
Fuel consumption data across the propulsion curve underscores its efficiency, helping operators manage fuel costs without sacrificing power.
Isuzu UM6BG1TC Engine Specifications
| Item | Specification |
|---|---|
| Configuration | 6‑cylinder, vertical in‑line, 4‑cycle diesel engine |
| Bore × Stroke | 105 × 125 mm (4.13 × 4.92 in) |
| Displacement | 6.494 Lit. (396 cid) |
| Rated output (Medium duty) | 154 kW (210 PS) / 2600 min⁻¹ |
| Rated output (Light duty) | 169 kW (230 PS) / 2700 min⁻¹ |
| Application | Commercial use |
| Governor type | Mechanical |
| Combustion type | Direct injection |
| Aspiration | Turbo chargered / Intercooler |
| Exhaust gas status | IMO Tier II |
| Engine weight (with MGN40E) | 769 kg (1,695 lb) |
| Fuel used | Diesel fuel |
| Starter | 24 V – 4.5 kW |
| Alternator | 24 V – 40 A |
| Lubrication method | Full flow pressure circulation |
| Cooling method | Freshwater, full flow pressure circulation (Seawater, indirect) |
| Heat exchanger | Seawater circulation |
| Intercooler | Multi‑tube type (seawater circulation) |
| Crankshaft rotation | Right (clockwise) viewed from front of engine / Right (clockwise) viewed from stern |
| Idling speed | 500 min⁻¹ |
| Marine gear | MGN40E |
|---|---|
| Reverse type | Constant‑mesh type gear |
| Reduction ratio | 1.94, 2.33, 2.91, 3.45 |
| Clutch type | Wet, Multi‑plate hydraulic type |
| Rotation direction (Propeller shaft) | Right (clockwise) |
Standard Accessories
· Installation kit
· Bilge pump
· Oil drain pump
· Kingston valve
· Control head
· Blow-by pipe
· Battery relay
· Instrument panel
· V-belt*
· Extension harness (5m)
· Seawater pump impeller *
. Owner’s manual
* spare parts
Optional Accessories
· Extension harness (5m)
· Control cable (4m,6m,10m,12m)
· Stop cable (4m,6m,8m)
